By Traxxas

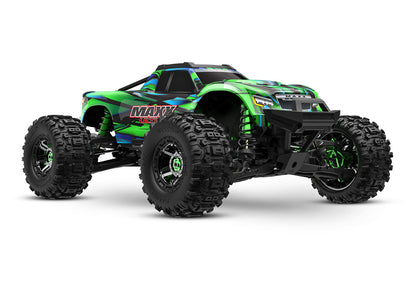

Maxx Ultimate

SKU: 89087-4-GRN
$899.95
$899.95
Shipping calculated at checkout.
Color: Green
$899.95
$899.95

Product Options
Specs

MODEL SPECS

Name: Maxx Ultimate
Type: Monster Truck
Top Speed: 60+ mph with 4s LiPo battery and optional gearing
Model Skill Level: 4
Scale: 1/10
Weight: 10.20 pounds (4.63 kg)
Length: 22.50 inches (572 mm)
Width: 15.95 inches (405 mm)
Track: 15.95 inches (405 mm)
Height: 9.12 inches (232 mm)

MOTOR SPECS

Name: Velineon® 540XL
Motor Type: 2400 Kv sensorless brushless
Weight: 317 g (11.18 oz)
Length: 3.58 inches (91 mm)
Diameter: 1.41 inches (36 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors

ESC SPECS

Name: Velineon® VXL-4s
ESC Type: Brushless
Case Size: 72 mm L x 59 mm W x 49 mm H
Weight: 7.09 ounces (201 grams)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors



Features
  • High Performance Aluminum Upgrades
    • 6061-T6 aluminum C-hubs
    • 6061-T6 aluminum steering blocks
    • 6061-T6 aluminum rear hub carriers
    • 6061-T6 aluminum transmission cover
    • 6061-T6 aluminum motor cradle
  • 55 mph out of the box using single 4s LiPo battery (sold separately)
  • 60+ mph with optional gearing & 4s LiPo battery (sold separately)
  • VXL-4s™ Waterproof Electronic Speed Control
    • 3s–4s LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link™
    • Machined heat sinks
    • 10 gauge silicone wire
    • Integrated protection circuits
    • LED status lights
    • Waterproof
  • Velineon® 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 Kv
    • 5 mm output shaft
    • Aluminum heat sink
    • Cooling fan
  • Traxxas Stability Management®
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
    • Factory-installed telemetry through VXL-4s ESC
    • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Clipless Body Mount System
    • Unique Maxx Ultimate graphics
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Molded body reinforcements for extra protection against tearing
  • Driveline
    • Full-time shaft-driven 4-wheel drive
    • Steel constant-velocity driveshafts
    • Torque-Biasing Center Drive with aluminum housing
    • 17 mm aluminum axle adapters & wheel nuts
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Heavy-duty Cush Drive™ with steel spur gear
    • Splined aluminum center driveshaft
  • Secure Motor Mounting System
    • Aluminum full-length motor cradle
    • Precise, fixed gear mesh adjustments
    • Motor retention separate from gear mesh
  • Modular Composite Chassis
    • Extended modular chassis design interlocks with front and rear bulkheads
    • Absorbs and distributes impact energy
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Easy Battery Access
    • Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
    • Battery is protected deep in the chassis
    • Battery hold-downs pivot for easy access
    • More secure than conventional retention systems
  • Steering
    • 6061-T6 aluminum steering bellcranks
    • 2085RL high-output metal gear steering servo
      • 650 oz-in torque at 6.0 volts
      • 0.13 sec/60° at 6.0 volts
    • Double-shear aluminum servo horn
    • Heavy-duty servo saver spring
  • Suspension
    • TUBES 7075-T6 Aluminum front toe links
    • WideMaxx® suspension arms
      • Tough composite formula resists impact damage, even in cold weather
    • All critical suspension points have double shear strength
    • Aluminum suspension pin retainers
    • Steel pivot balls
  • GT-Maxx® Shocks
    • Threaded aluminum body
    • Aluminum shock caps with pivot balls
    • Ultra-smooth TiN-coated damper shafts
    • Adjustable aluminum upper spring retainer
    • Lower seal cartridge with dual X-rings
    • Lower spring perches bolted on
  • Bumpers
    • Tough energy absorbing front and rear bumpers
    • Lower front and rear skid plates for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
    • Wheelie bar with aluminum wheels
  • Wheels & Tires
    • 2.8″ black chrome wheels with keyed 17 mm hex receptor
    • Sledgehammer® extreme tires for sure-footed traction
    • 1-piece foam inserts
    • Pre-glued, TSM® rated
What's Included
MODEL 89087-4: Maxx® Ultimate: 1/10 scale monster truck, fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-4s™ brushless power system, and ProGraphix® painted body.

What’s In The Box:

  • Maxx Ultimate with Velineon® 540XL brushless motor
  • VXL-4s waterproof electronic speed control with integrated telemetry
  • TQi 2.4 GHz radio system with factory-installed wireless module
  • Quick Start Guide
  • High quality maintenance tools

What You’ll Need:

  • LiPo Battery

    Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

  • Charger

    LiPo Balance Charger with iD®

  • Alkaline Batteries

    Four AA alkaline batteries for the transmitter.
