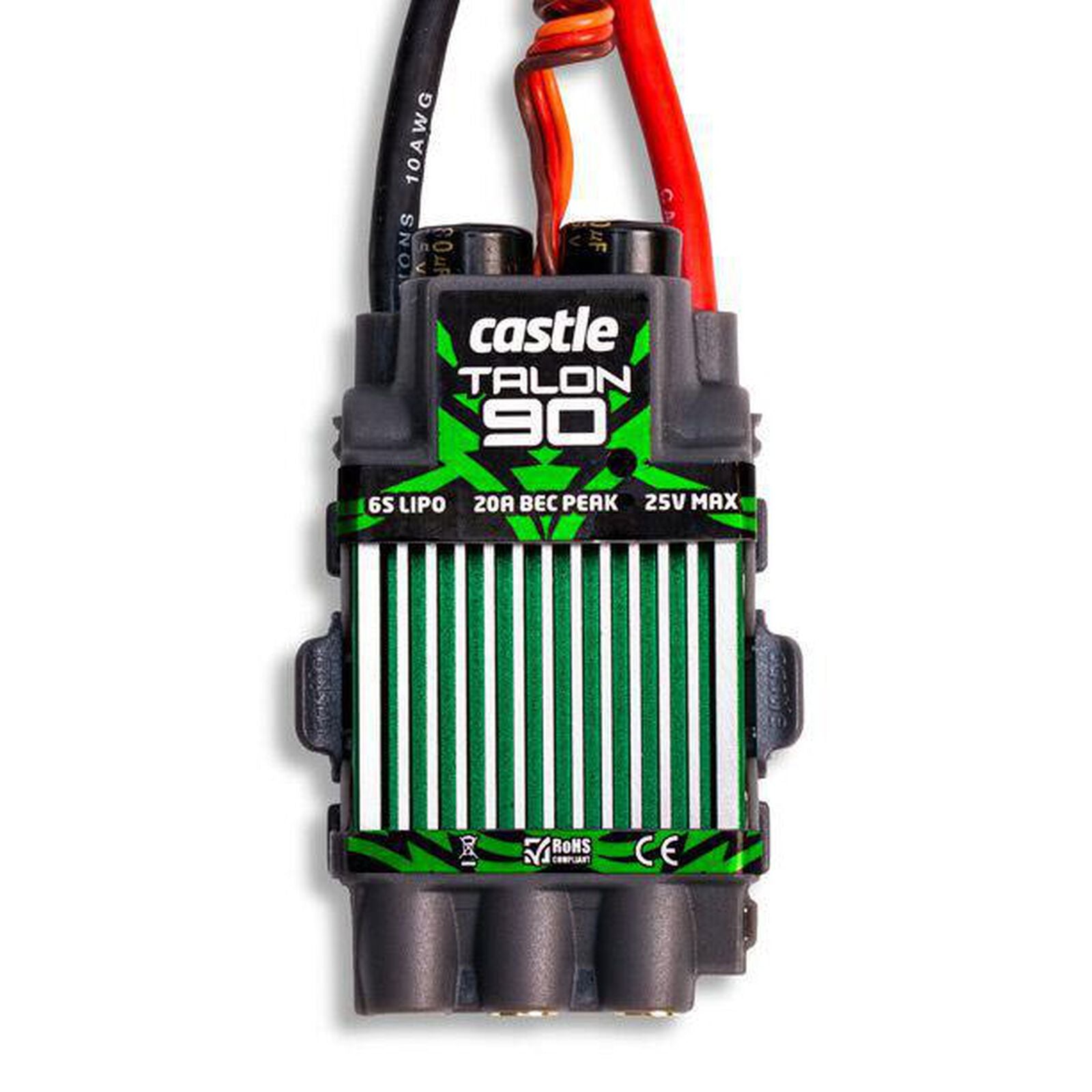

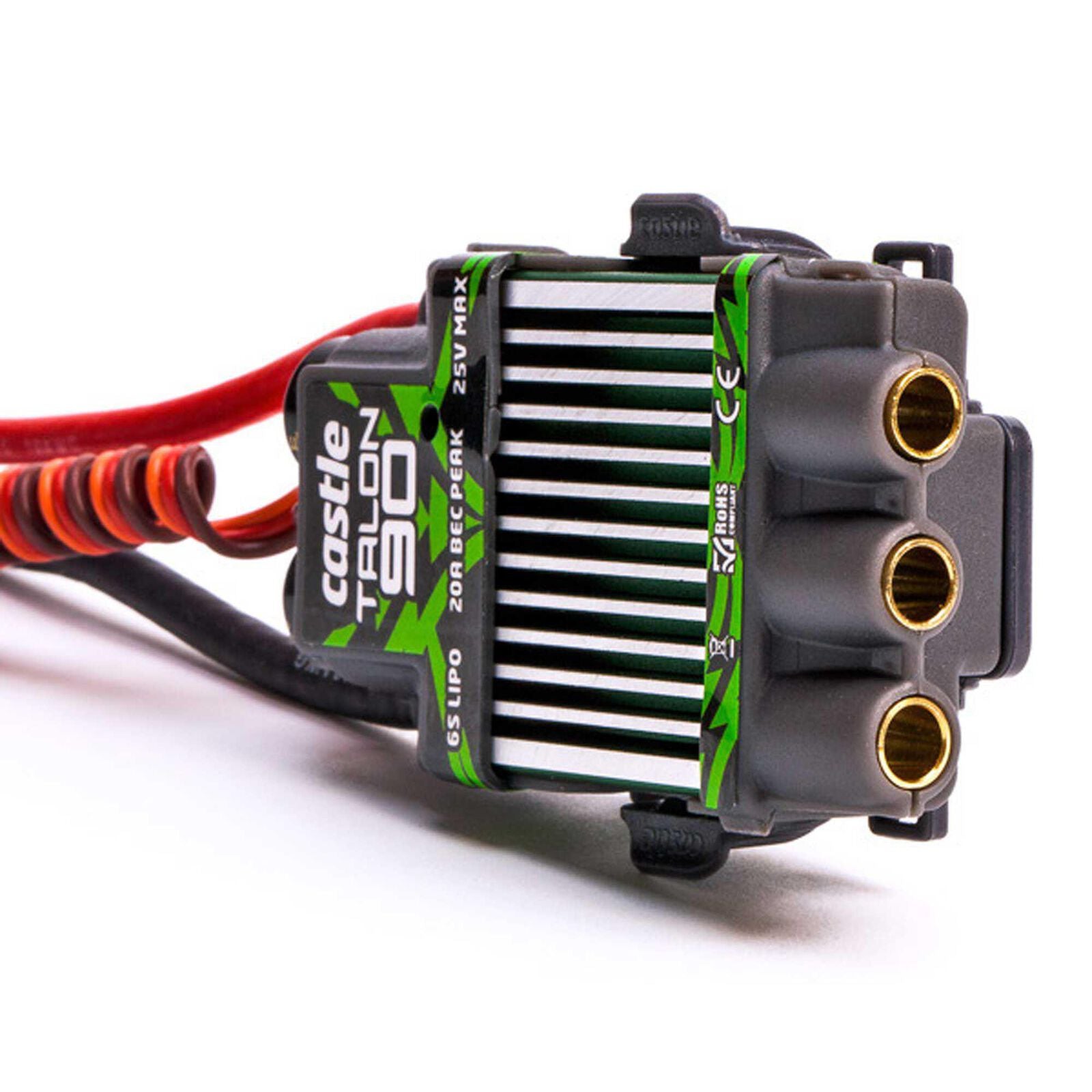

Talon 90-Amp 25V BL ESC with 20amp BEC

SKU: CSE010009700
Regular price $99.95
Regular price Sale price $99.95
Shipping calculated at checkout.
Talon 90-Amp 25V BL ESC with 20amp BEC
Regular price $99.95
Regular price Sale price $99.95

Overview

Needed To Complete

- Battery connectors (sold separately)
- Female motor bullets are built into the ESC
- Matching male bullets are included, need to be installed on motor

Overview

Castle’s Talon 90 ESC sports a BEC designed for today’s servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

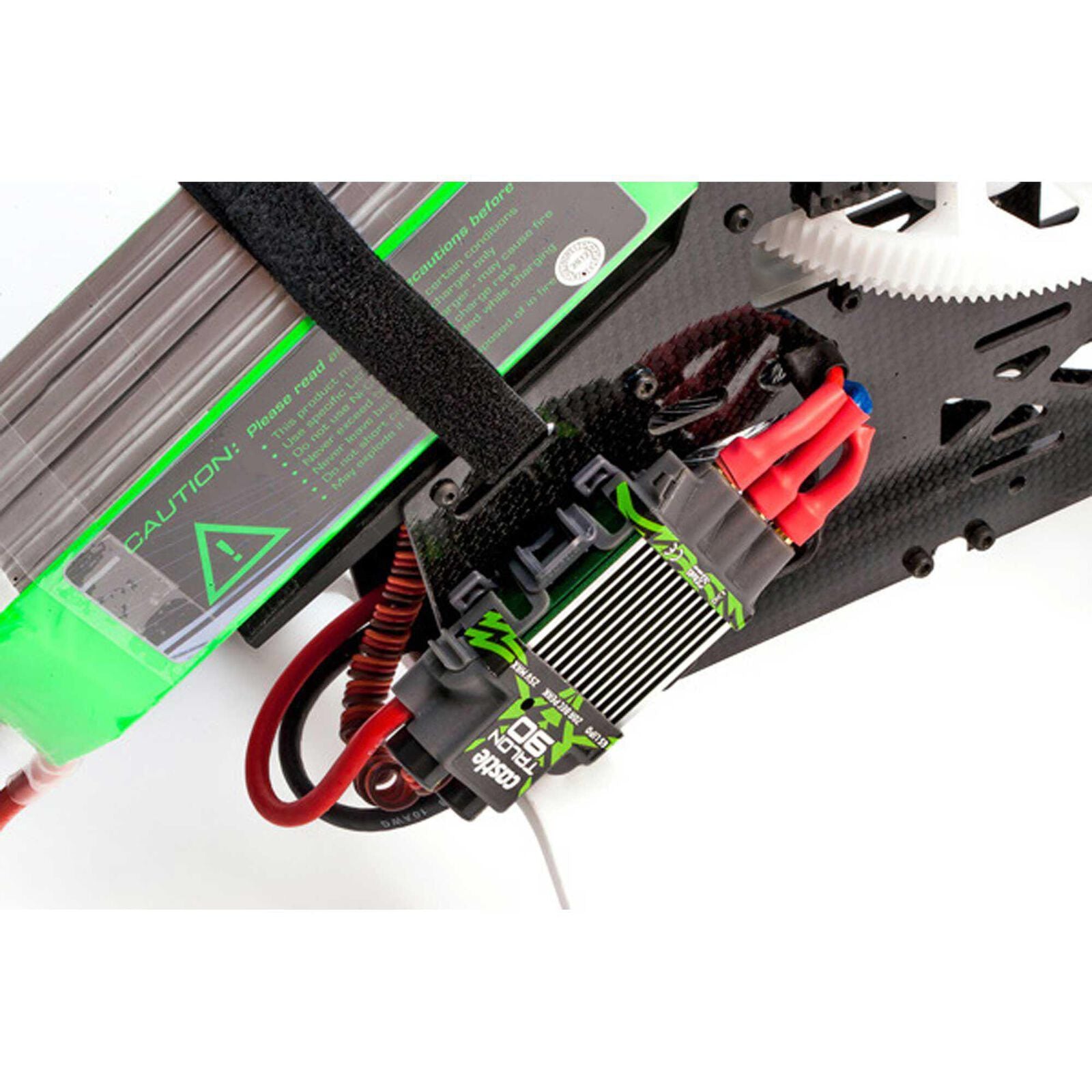

Talon 90 is ideal for helicopters drawing 2,000 watts on 6S. It’s a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups. Of course, Talon offers Castles industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!

The Talon 90 is also perfect for fixed-wing aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

Detailed Information

Castle Talon 90-Amp 25V BL ESC specs diagram

Technical Notes

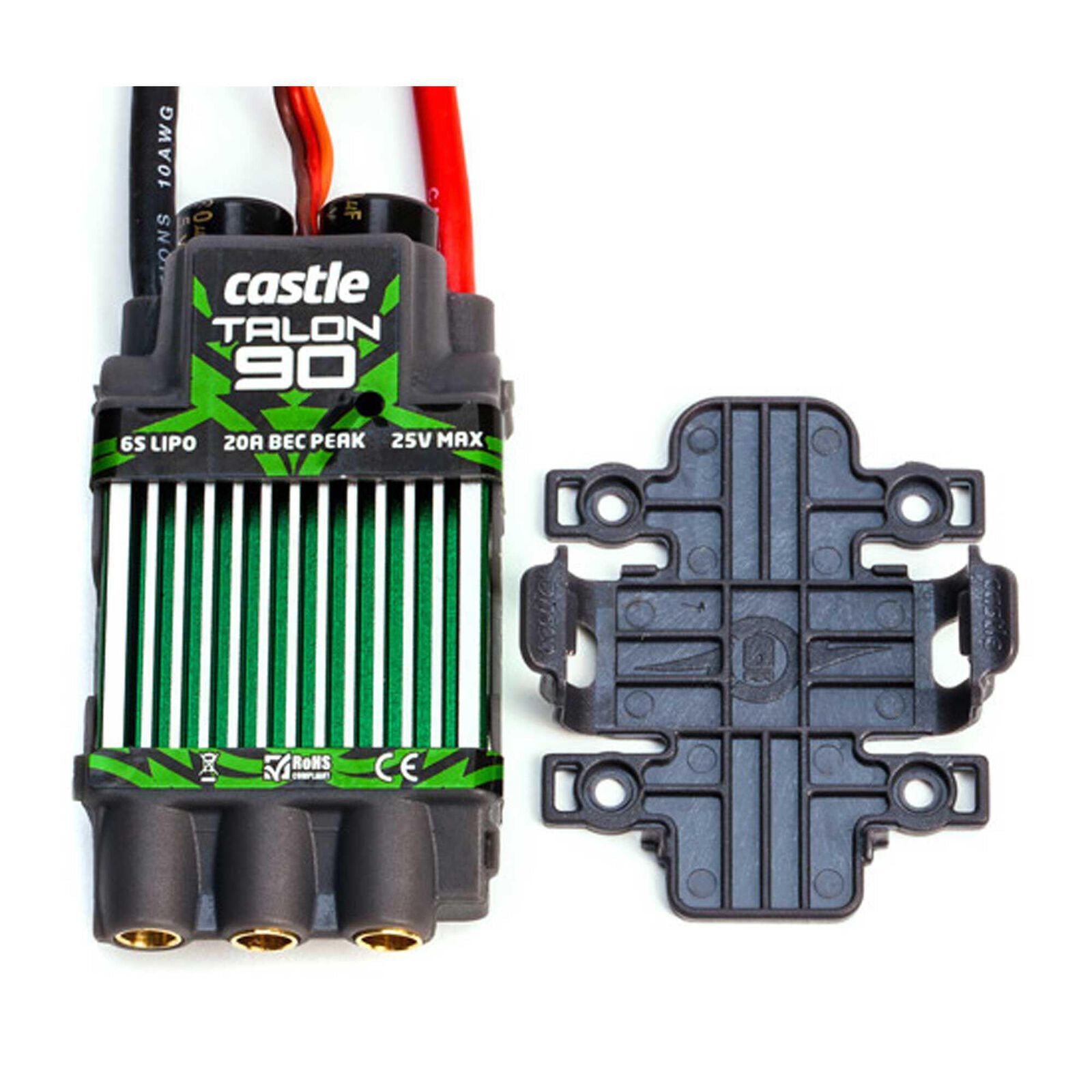

Mounting bracket adds 2mm height and 8mm width.


Specifications

Amperage
60 & Up
Auto Cutoff
Yes, programmable
BEC Voltage
6V or 8V, user selectable; 9A continuous, 20A peak output
Brakes
Yes, programmable
Connector Type
Open Ends
Input Voltage
3S-6S LiPo
Output Connector
5mm Bullet
Part Type
Electronics
Product Height
1.7 in (43mm)
Product Length
3.0 oz (84.5 g)
Product Weight
3.0 oz (84.5 g)
Product Width
1.7 in (43mm)
Programmable
Yes
